S-5 ARS-57

Rappels

  • Type : Roquette non-guidée

Versions

Longueur Diamètre Envergure Masse Portée maximale Masse de la charge
Nudelman S-5 ARS-57915 mm (36 in)57 mm (2,24 in)232 mm (9 in)3,99 kg (8,796 lbs)2 km (1,24 mi, 1,08 nm)1,16 kg (2,56 lbs)
Nudelman S-5K830 mm (33 in)57 mm (2,24 in)232 mm (9 in)3,64 kg (8,025 lbs)2 km (1,24 mi, 1,08 nm)1,1 kg (2,43 lbs)
Nudelman S-5K1830 mm (33 in)57 mm (2,24 in)232 mm (9 in)3,64 kg (8,025 lbs)2 km (1,24 mi, 1,08 nm)1,1 kg (2,43 lbs)
Nudelman S-5KO987 mm (39 in)57 mm (2,24 in)232 mm (9 in)4,43 kg (9,766 lbs)2 km (1,24 mi, 1,08 nm)1,36 kg (3 lbs)
Nudelman S-5KP1 079 mm (42 in)57 mm (2,24 in)232 mm (9 in)5,01 kg (11,045 lbs)2 km (1,24 mi, 1,08 nm)1,8 kg (3,97 lbs)
Nudelman S-5KPB1 079 mm (42 in)57 mm (2,24 in)232 mm (9 in)5,01 kg (11,045 lbs)2 km (1,24 mi, 1,08 nm)1,8 kg (3,97 lbs)

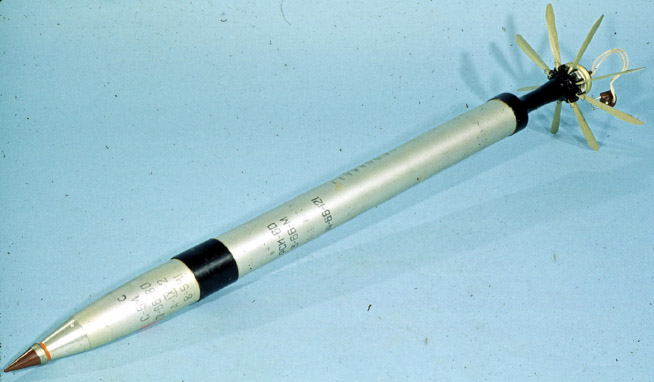

Nudelman S-5M882 mm (35 in)57 mm (2,24 in)232 mm (9 in)3,86 kg (8,51 lbs)2 km (1,24 mi, 1,08 nm)0,8 kg (1,76 lbs)
Nudelman S-5M1882 mm (35 in)57 mm (2,24 in)232 mm (9 in)3,86 kg (8,51 lbs)2 km (1,24 mi, 1,08 nm)0,8 kg (1,76 lbs)
Nudelman S-5MO998 mm (39 in)57 mm (2,24 in)232 mm (9 in)4,82 kg (10,626 lbs)2 km (1,24 mi, 1,08 nm)0,8 kg (1,76 lbs)
Nudelman S-5O57 mm (2,24 in)232 mm (9 in)2 km (1,24 mi, 1,08 nm)
Nudelman S-5O1948 mm (37 in)57 mm (2,24 in)232 mm (9 in)4,94 kg (10,891 lbs)2 km (1,24 mi, 1,08 nm)1,73 kg (3,81 lbs)
Nudelman S-5P PARS-571 073 mm (42 in)57 mm (2,24 in)232 mm (9 in)5,04 kg (11,111 lbs)2 km (1,24 mi, 1,08 nm)
Nudelman S-5P11 073 mm (42 in)57 mm (2,24 in)232 mm (9 in)5,04 kg (11,111 lbs)2 km (1,24 mi, 1,08 nm)
Nudelman S-5S57 mm (2,24 in)232 mm (9 in)2 km (1,24 mi, 1,08 nm)
Nudelman S-5SB57 mm (2,24 in)232 mm (9 in)2 km (1,24 mi, 1,08 nm)
